[feed size] : ≤3300mm
[processing capacity] : 27-1814m /h
[scope of application] : used in mining, building materials, transportation, energy, chemical and other industries.
[applicable materials] : quartz stone, river pebble, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, etc
- Introduction

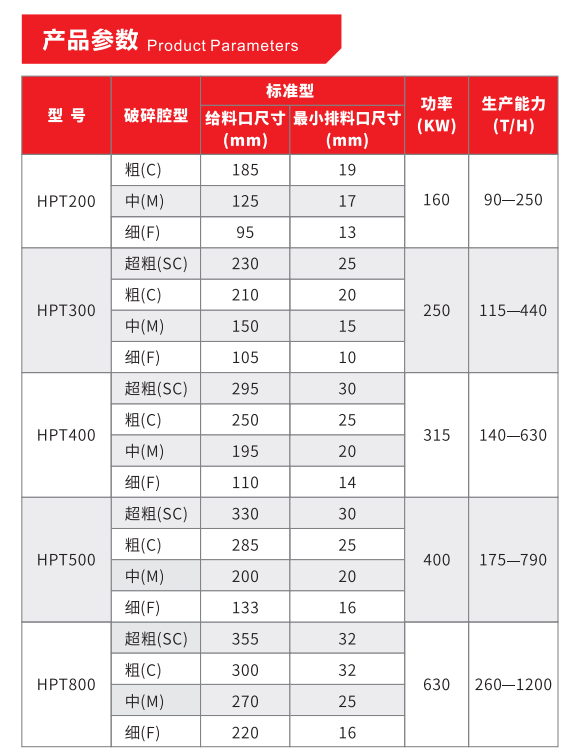

- parameters

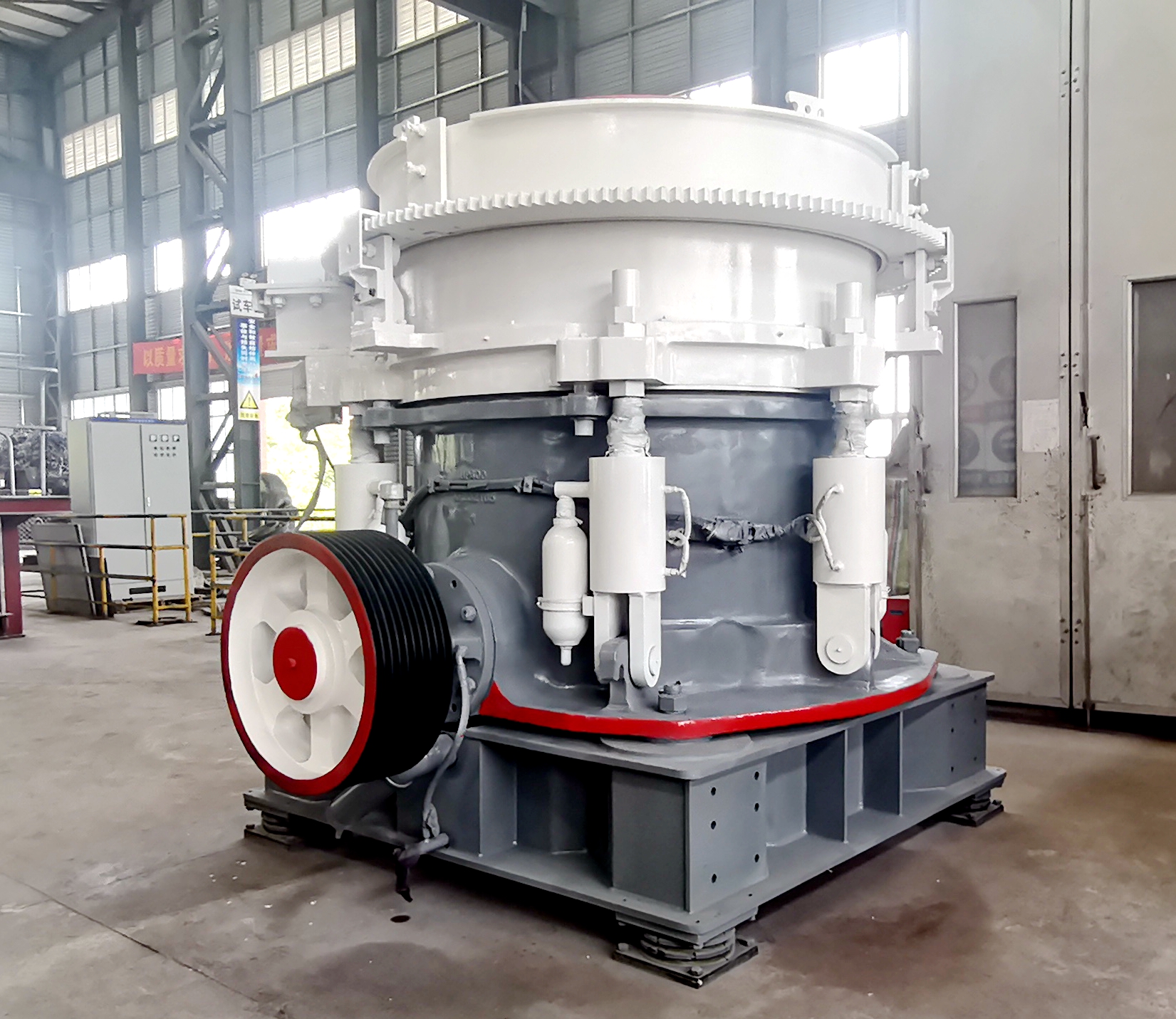

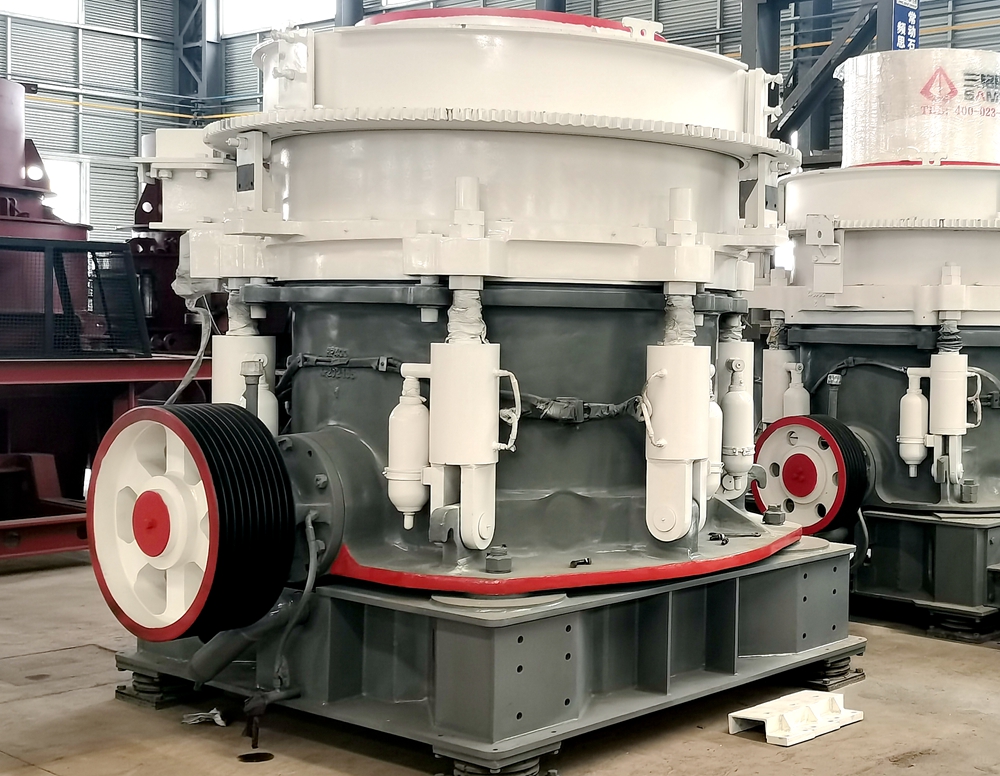

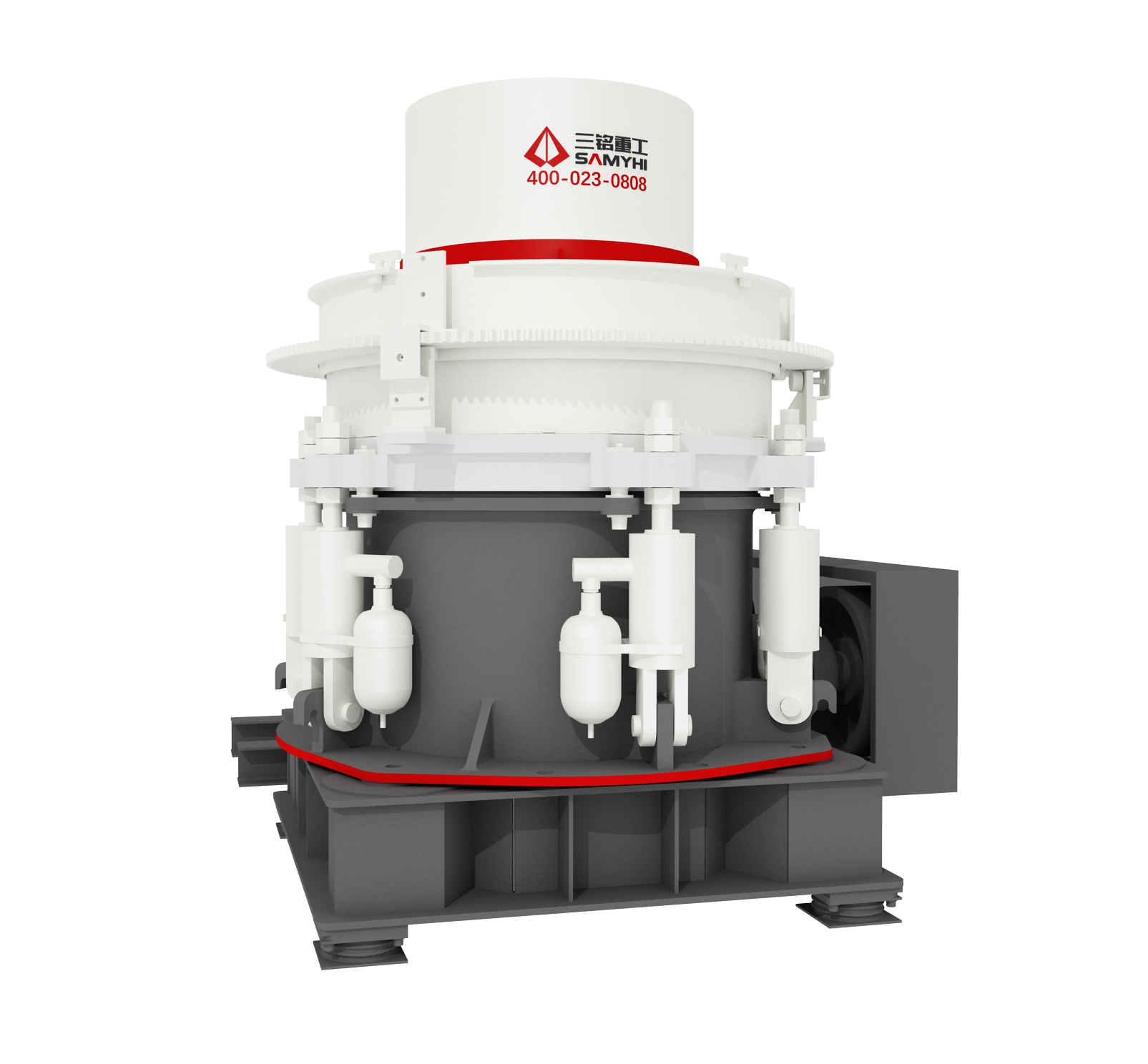

HPT series multi-cylinder hydraulic cone crusher is a new generation of multi-cylinder hydraulic cone crusher developed and produced based on the introduction of German high technology and the company's accumulated years of production experience and technology. Ideal choice.
This series of multi-cylinder hydraulic cone crusher uses modern computer simulation technology to optimize the design of the crushing chamber and main shaft, so that the HPT series multi-cylinder hydraulic cone crusher has higher output, high proportion of fine materials, convenient maintenance and adjustment, and crushing The product has excellent grain shape, from construction stone, sand making to medium crushing, fine crushing and super crushing of metal ore, all showing extremely excellent performance.
1. The whole lubrication and regulation system adopts automatic hydraulic lubrication and regulation structure. At the same time, alarm and power failure structure are designed.
2. Adjust the size in the use of full automatic design at the same time, also consider the overload and iron intake and other foreign body device, in the crushing chamber into the foreign body, do not need to stop the disassembly, in a certain range of automatic adjustment function, greatly reduce the labor intensity of workers, effectively protect the main parts of the equipment from damage;
3. Optimize the structure of the transmission part, adopt imported oil seals for multi-layer sealing, adjust the oil circuit structure and other design, so that the whole equipment in long-term operation without oil leakage and lack of oil;
4. Increase the eccentricity, improve the processing capacity;
5. Coarse and fine crushing cavity type only need to replace the adapter ring and tooth plate, can be replaced at will;
6. Raise the moving cone selection center and optimize the cavity design;
7. Liner thickening, prolong life;
8. Hydraulic motor replaces hydraulic push rod device;
9. The key parts are made of high strength material, and the weight is increased appropriately to achieve high reliability.
